Getting Started Tutorial

Lets create a simple flow that helps illustrate the core concepts of pyllments by building and serving a chat application with a persistant chat history.

Please make sure that you’ve installed pyllments if you want to follow along.

If you don’t care about building flows, you can hop on over to the recipes section to run pre-built applications. Or skip to the very end to run our example flow.

1. Creating your first `Element`

The fundamental building block of pyllments, is as you may have guessed, an Element.

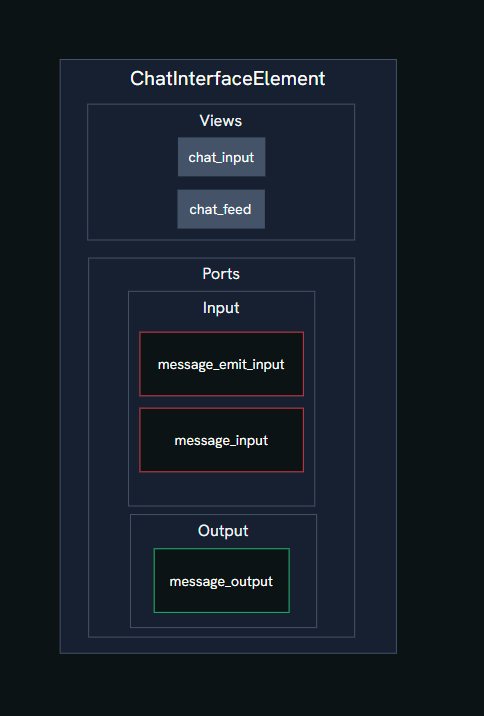

An element is composed of a Model that handles the business logic, Ports that handle the communication between elements, and optionally, Views that handles the frontend representation of the element.

1from pyllments.elements import ChatInterfaceElement

2chat_interface_el = ChatInterfaceElement()

1: Import the ChatInterfaceElement from the pyllments.elements subpackage. This is how to import an element efficiently.
2: Create an instance of the ChatInterfaceElement.

2. Adding more elements

Now that we’re getting the hang of it, lets create a couple more.

from pyllments.elements import LLMChatElement, HistoryHandlerElement

1llm_chat_el = LLMChatElement(model_name='gpt-4o')
2history_handler_el = HistoryHandlerElement(
    history_token_limit=1000,
    tokenizer_model='gpt-4o'
)

1: Create an instance of the LLMChatElement with the model name set to ‘gpt-4o’. LLMChatElement uses the LiteLLM naming system and is compatible with the chat models supported by LiteLLM. All you need is the corresponding API key in an .env file.
2: Create an instance of the HistoryHandlerElement with the token limit set to 1000 tokens as measured by the gpt-4o tokenizer. This is the default tokenizer used and can be expected to be a good enough estimate for most use cases.

Creating Context

To not have a completely lame chatbot, we want to combine our query to it with some context like a history of the previous messages as well as a system prompt it can use to guide its responses.

Under the hood, the ContextBuilderElement uses a payload conversion mapping from port types to generate MessagePayloads to be used as context. (See Here)

context_builder_el = ContextBuilderElement(
1    input_map={
2        'system_prompt_constant': {
            'role': 'system',
            'message': 'You are actually a pirate and will respond as such.'
            },
3        'history': {'payload_type': list[MessagePayload]},
4        'query': {'payload_type': MessagePayload}
    },
5    emit_order=['system_prompt_constant', '[history]', 'query']
    )

1: The input_map is a mandatory argument to the ContextBuilderElement, as it describes the inputs we will be using to build our context.
2: One type of input is the constant. It is converted to a message of a specified role. It must have the _constant suffix. (The other types are ports and templates)
3: The history input is a port that expects a list[MessagePayload] type.
4: The query input is a port that emits a MessagePayload.
5: The emit_order argument is a list of the input keys in the order we want them to be emitted. When all inputs are available, we emit a list of messages. The square brackets around [history] indicate that it is optional.

(For more on the ContextBuilderElement, clicky here)

3. Your first flow

Lets take a moment to think about what we want to achieve. We are creating a chat interface which uses an LLM to respond to message while also taking into account the history of the conversation.

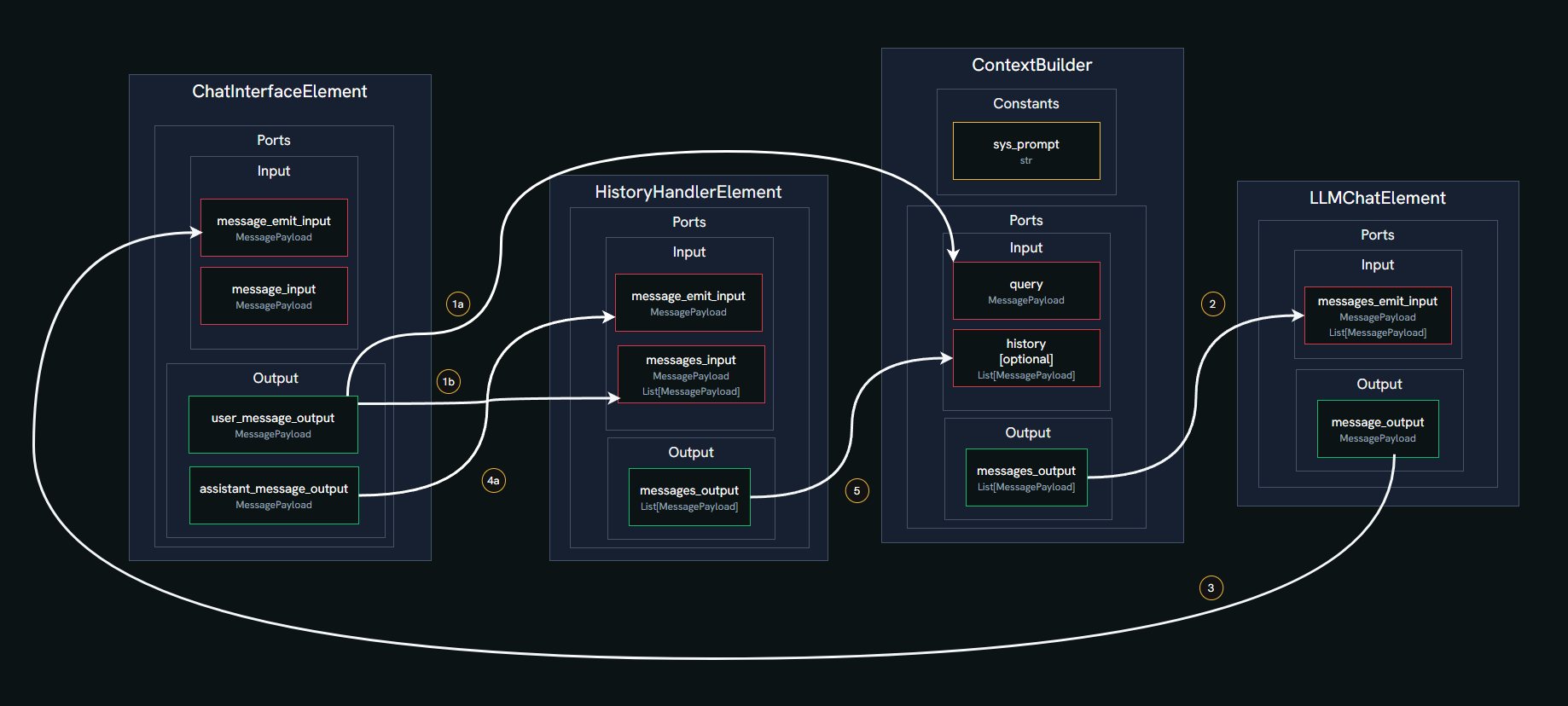

Below, you can see that each individual element has its own unique set of input and output ports as well as a designated Payload type it either emits or receives. In this case, we’re only using the MessagePayload and List[MessagePayload] types. For an output port to connect to an input port, its payload type must be compatible with the input port’s payload type.

Port name nomenclature

The _emit_input suffix tends to be used to signify that upon the reception of a Payload, the Element will emit a Payload in return.

For the ContextBuilderElement to connect to the LLMChatElement, the messages_emit_input port of the LLMChatElement must be able to accept a List[MessagePayload] type.

To facilitate the proper communication between the elements:

When we type a message into the ChatInterfaceElement and hit send, in addition to rendering it in the chatfeed,it emits a MessagePayload through the message_output port.
1. The ContextBuilderElement receives the MessagePayload through the query port. More on this below.
2. The HistoryHandlerElement recieves a MessagePayload through the message_input port. This message is incorporated into our the running history it contains. This does not trigger an emission.
When the ContextBuilderElement receives the MessagePayload through the query port, the condition is satisifed for the emission of a list of messages. Remember, the history port is optional, so it need not receive any payload for us to trigger the emission. It is simply ignored from the emit_order when no history is present at that port.
As the LLMChatElement receives a list of messages, it sends them to the LLM we have specified and emits a MessagePayload response through the message_output port.
The MessagePayload is received by the ChatInterfaceElement and rendered in the chatfeed. However, we should note that the message_emit_input port also triggers the emission of that very same message after it has streamed to the chatfeed to be passed along, and this time, out of the assistant_message_output port.
The message is received by the HistoryHandlerElement in its message_emit_input port. This triggers it to emit its message history as a list[MessagePayload] to the ContextBuilderElement. Now, when we send a new message through our interface, the history will be included in the context.

4. Connecting the elements

Now that we have a flow in mind, connecting the elements is a breeze.

chat_interface_el.ports.user_message_output > context_builder_el.ports.query
chat_interface_el.ports.user_message_output > history_handler_el.ports.messages_input

history_handler_el.ports.messages_output > context_builder_el.ports.history

context_builder_el.ports.messages_output > llm_chat_el.ports.messages_emit_input

llm_chat_el.ports.message_output > chat_interface_el.ports.message_emit_input

The ports are accessed using dot notation on the ports attribute of the element. In the case of llm_chat_el.ports.message_output > chat_interface_el.ports.message_emit_input, we are connecting an output port of the LLMChatElement to an input port of the ChatInterfaceElement using the > operator, with the output port being on the left hand side of it. It is equivalent to llm_chat_el.ports.message_output.connect(chat_interface_el.ports.message_emit_input).

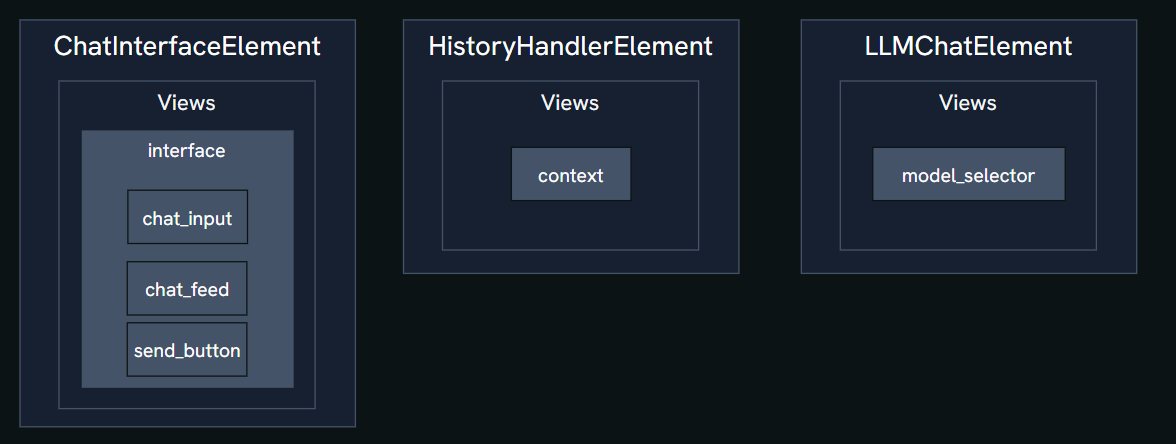

5. Creating the views

After connecting the elements, we can create the views responsible for generating the visual components of our application.

1import panel as pn

2interface_view = chat_interface_el.create_interface_view(width=600, height=800)
3chat_history_view = history_handler_el.create_context_view(width=220)
4model_selector_view = llm_chat_el.create_model_selector_view()

5main_view = pn.Column(
    model_selector_view,
    pn.Spacer(height=10),
    pn.Row(
        interface_view,
        pn.Spacer(width=10),
        chat_history_view
        ),
    styles={'width': 'fit-content'}
)

1: The panel library is imported to help with the view layout. The front end of pyllments is built using Panel, and supports rendering panel widgets and panes within pyllments applications.
2: interface_view is created by calling the create_interface_view method of the ChatInterfaceElement. This view is a wrapper around the chat_input_view, chat_feed_view, and send_button_view. The height and width are specified in pixels.
3: chat_history_view is created by calling the create_context_view method of the HistoryHandlerElement. This view contains the current chat history which is sent to the LLM. Here, only the width is specified, as the height will stretch to fit its container.
4: model_selector_view is created by calling the create_model_selector_view method of the LLMChatElement. This view allows us to select the model we wish to chat with. The width isn’t specified because we want it to stretch to fit its container.
5: Lastly, we use the panel row and column layout helpers to organize the views. The spacers are used to create some visual space between the views and neaten things up.

6. Serve your flow as an application

To create an application from your flow, you must create a function decorated with a @flow decorator that returns a view object. Every time the page is reloaded, the code in that function will be executed. This means that you have the option of instantiating the elements every single time the page is reloaded, or reusing them.

Reused Elements
New Element Creation

from pyllments import flow

# {{ Element creation here }}

@flow
def my_flow():
    # {{ View creation here }}
    return main_view

from pyllments import flow

@flow
def my_flow():
    # {{ Element and view creation here }}
    return main_view

Make sure that you .env file is in your working directory or its parent directories. (Alternatively, you can specify the path to the .env file using the --env flag)

Save your code as a python file my_flow.py and serve it:

pyllments serve my_flow.py

Add a --logging flag to see under the hood.

More info on the pyllments serve command

pyllments serve --help
-----------------------------------------
 Usage: pyllments serve [OPTIONS] FILENAME

 Start a Pyllments server

╭─ Arguments ───────────────────────────────────────────────────────────────────────────╮
│ *    filename      TEXT  [default: None] [required]                                   │
╰───────────────────────────────────────────────────────────────────────────────────────╯
╭─ Options ─────────────────────────────────────────────────────────────────────────────╮
│ --logging            --no-logging             Enable logging. [default: no-logging]   │
│ --logging-level                      TEXT     Set logging level. [default: INFO]      │
│ --no-gui             --no-no-gui              Don't look for GUI components.          │
│                                               [default: no-no-gui]                    │
│ --port                               INTEGER  Port to run server on. [default: 8000]  │
│ --env                                TEXT     Path to .env file. [default: None]      │
│ --host           -H                  TEXT     Network interface to bind the server    │
│                                               to. Defaults to localhost (127.0.0.1)   │
│                                               for safer local development.            │
│                                               [default: 127.0.0.1]                    │
│ --profile            --no-profile             Enable profiling output.                │
│                                               [default: no-profile]                   │
│ --config         -c                  TEXT     Additional configuration options for    │
│                                               the served file. Provide either         │
│                                               multiple key=value pairs or a single    │
│                                               dictionary literal (e.g. '{"key":       │
│                                               "value"}').                             │
│ --help                                        Show this message and exit.             │
╰───────────────────────────────────────────────────────────────────────────────────────╯

Front End Video

7. Putting it all together

import panel as pn
from pyllments import flow
from pyllments.elements import (
    ChatInterfaceElement,
    LLMChatElement,
    HistoryHandlerElement,
    ContextBuilderElement
)


chat_interface_el = ChatInterfaceElement()
llm_chat_el = LLMChatElement(model_name='gpt-4o')
history_handler_el = HistoryHandlerElement(
    history_token_limit=1000,
    tokenizer_model='gpt-4o'
)
context_builder_el = ContextBuilderElement(
    input_map={
        'system_prompt_constant': {
            'role': 'system',
            'message': 'You are actually a pirate and will respond as such.'
            },
        'history': {'payload_type': list[MessagePayload]},
        'query': {'payload_type': MessagePayload}
    },
    emit_order=['system_prompt_constant', '[history]', 'query']
    )

chat_interface_el.ports.user_message_output > context_builder_el.ports.query
chat_interface_el.ports.user_message_output > history_handler_el.ports.messages_input

history_handler_el.ports.messages_output > context_builder_el.ports.history

context_builder_el.ports.messages_output > llm_chat_el.ports.messages_emit_input

llm_chat_el.ports.message_output > chat_interface_el.ports.message_emit_input

interface_view = chat_interface_el.create_interface_view(width=600, height=800)
chat_history_view = history_handler_el.create_context_view(width=220)
model_selector_view = llm_chat_el.create_model_selector_view()

@flow
def my_flow():
    main_view = pn.Column(
        model_selector_view,
        pn.Spacer(height=10),
        pn.Row(
            interface_view,
            pn.Spacer(width=10),
            chat_history_view
            ),
        styles={'width': 'fit-content'}
    )
    return main_view

CLI:

pyllments serve my_flow.py --logging
